擴展I/O模組
連接數量 Depends on Power Consumption
數位輸入點 Max. 224 (Including 24 built-in points)
數位輸出點 Max. 112 (Including 16 built-in points)
類比輸入通道 Max. 64
類比輸出通道 Max. 64
指示燈
ENET ACK(綠) Device Status Indicator
ENET ERR(紅) Device Error Indicator
IO RUN(綠) Module Status Indicator
IO ERR(紅) Module Error Indicator
數位輸入
總點數 24
輸入隔離 Yes, optical isolation
一般輸入點 輸入點數: 20
輸入邏輯: Sink OR Source
邏輯 1 電壓準位: 15~28 VDC
邏輯 0 電壓準位: 0~5 VDC
回應速度: OFF->ON: 5ms; ON->OFF: 1ms
高速輸入點 輸入點數: 4
輸入邏輯: SINK INPUT (PNP)*(2)
邏輯 1 電壓準位: 15~28 VDC
邏輯 0 電壓準位: 0~5 VDC
最大輸入頻率: 20KHz
數位輸出
輸出邏輯 Source
總點數 16
輸出電壓 11~28VDC
輸出電流 0.5A per channel (Max 4A)
回應速度 OFF->ON: 100μs
ON->OFF: 600μs
輸出隔離 Yes, optocoupler isolation
高速輸出點 總點數: 2
輸出邏輯: Source
輸出電壓: 5VDC
輸出電流: 50mA per channel
最大輸出頻率: 40KHz
輸出隔離: Yes, optocoupler isolation
Features
埠數 1
資料傳輸率 10/100 Mbps
資料傳輸媒介 4 x 2 twisted pair copper cable; category 3 (10 Mbps), category 5 (100 Mbps)
站間距離 100 m between hub/switch and Bus Coupler or between Bus Coupler and Bus Coupler
通訊協議 Modbus TCP Server, EtherNet/IP adapter
TCP/IP最大連線數 8 connections
隔離 Network to Logic Isolation : Yes
電源
輸入電源 24 VDC (‐15%/+20%)
額定消耗電流 Nominal 100mA@24VDC
Max. 530mA@24VDC
內部匯流排提供電源 Max. 2A@5VDC
內部匯流排消耗電流 350mA@5VDC
電源隔離 Logic to Field Power Isolation: Yes
備用保險絲 ≤ 1.6A Self-recovery
規格
PCB 塗層 Yes
外殼材質 Plastic

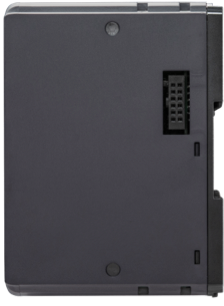

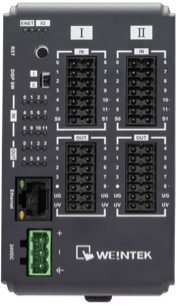

外形尺寸 WxHxD 64x 109 x 81 mm
重量 Approx. 0.27 kg

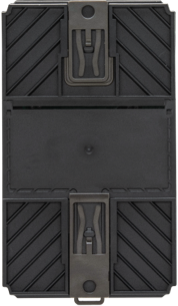

安裝方式 35mm DIN rail mounting
操作環境
防護等級 IP20
儲存環境溫度 ‐20° ~ 70°C (‐4° ~ 158°F)
操作環境溫度 -10° ~ 60°C (14° ~ 140°F)
相對環境濕度 10% ~ 90% (non‐condensing)
抗震動 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
認證
CE CE marked
UL cULus Listed
(2) Refer to wiring diagram - High Speed Input
